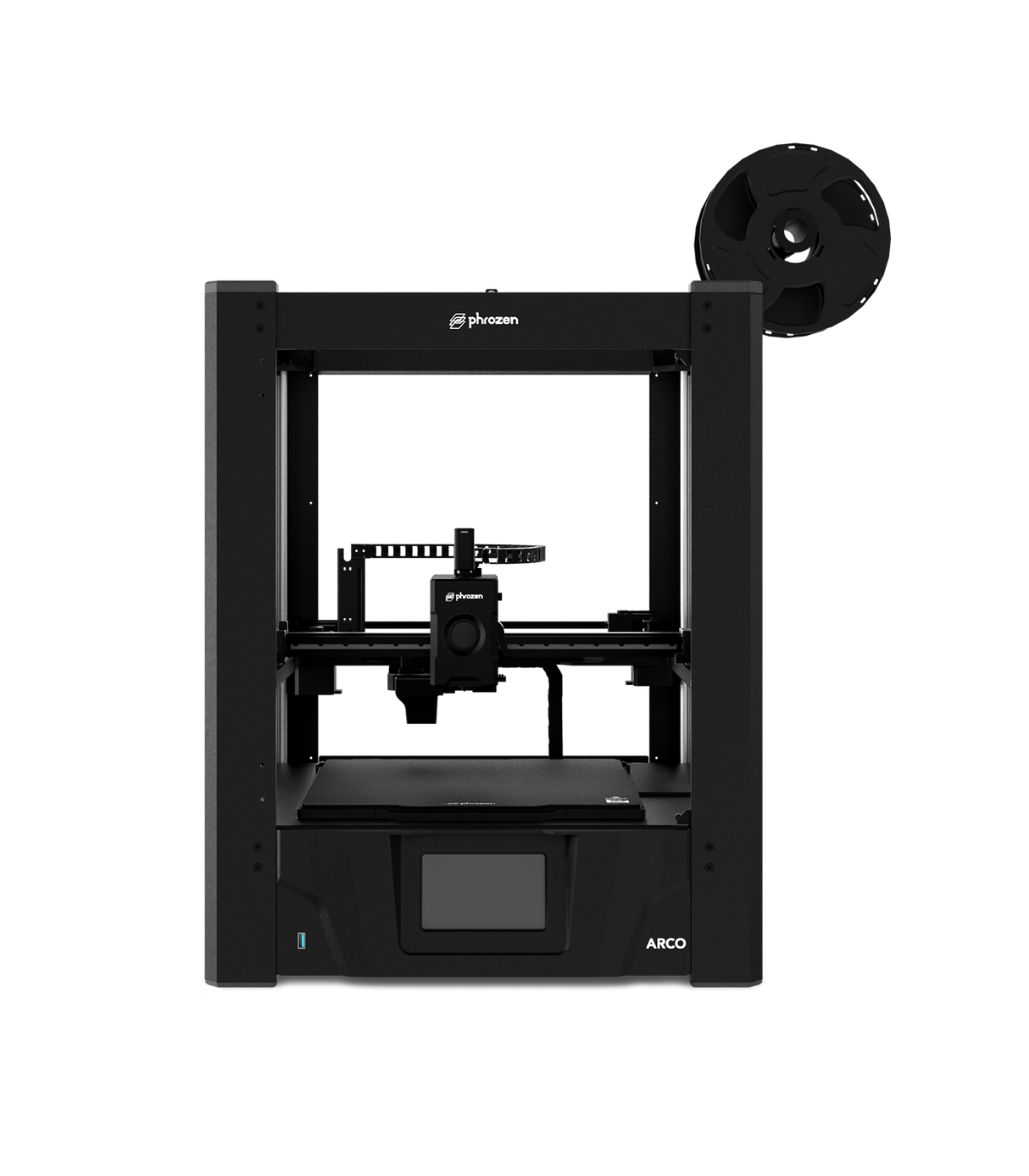

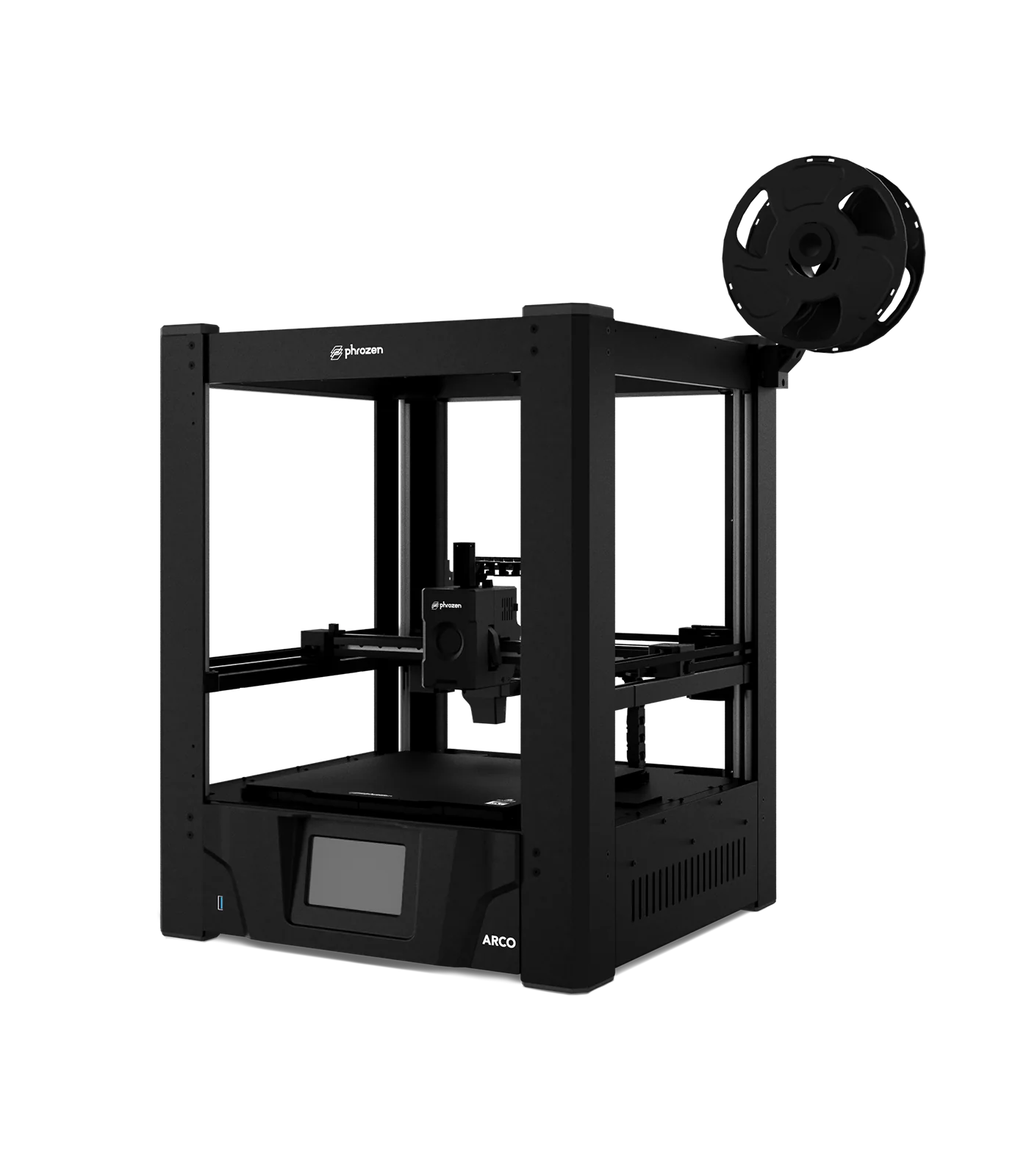

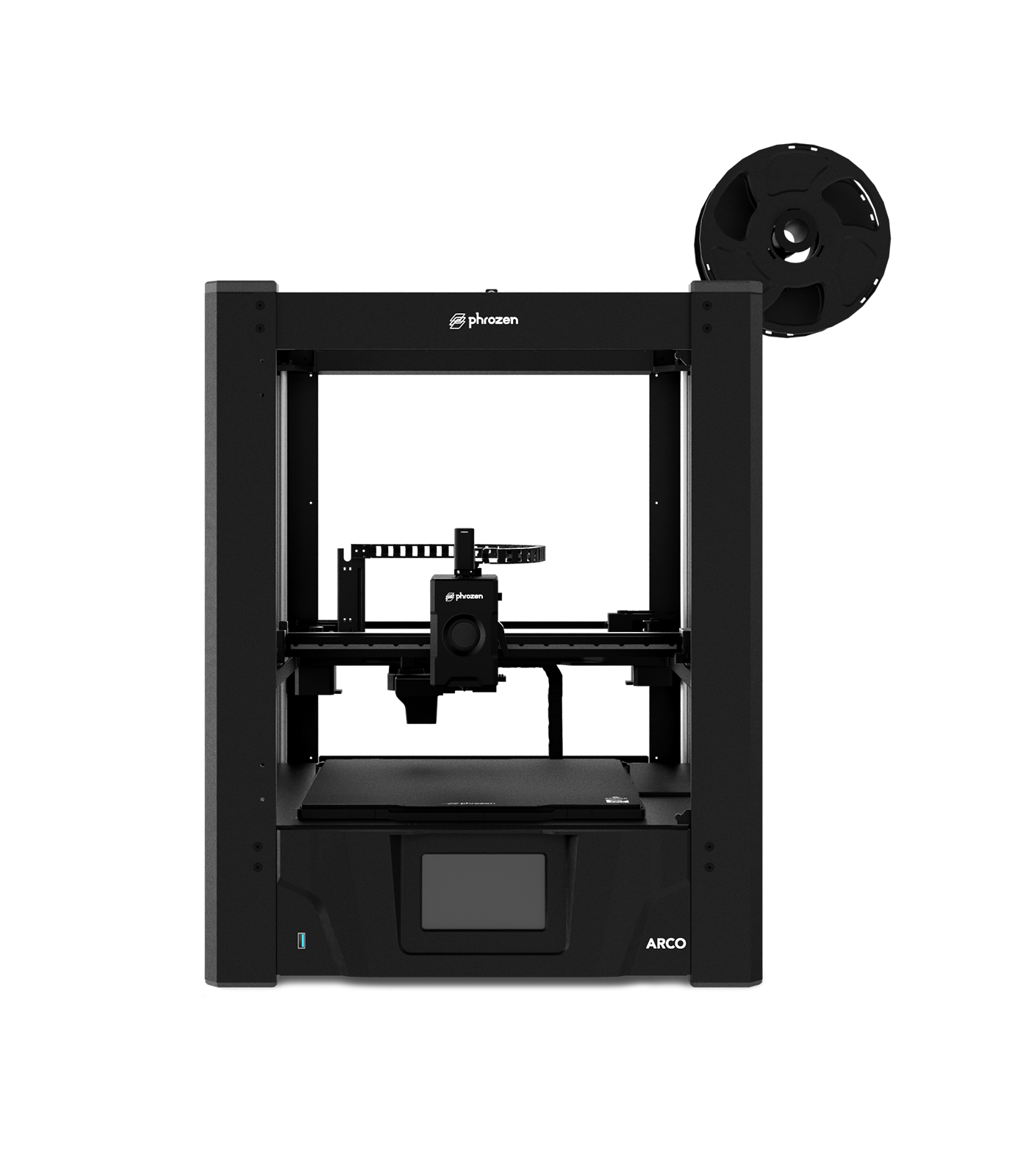

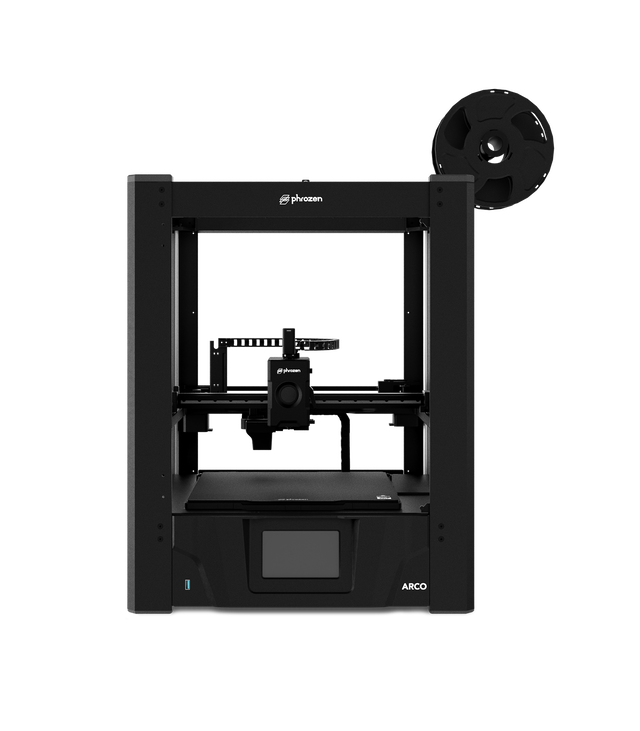

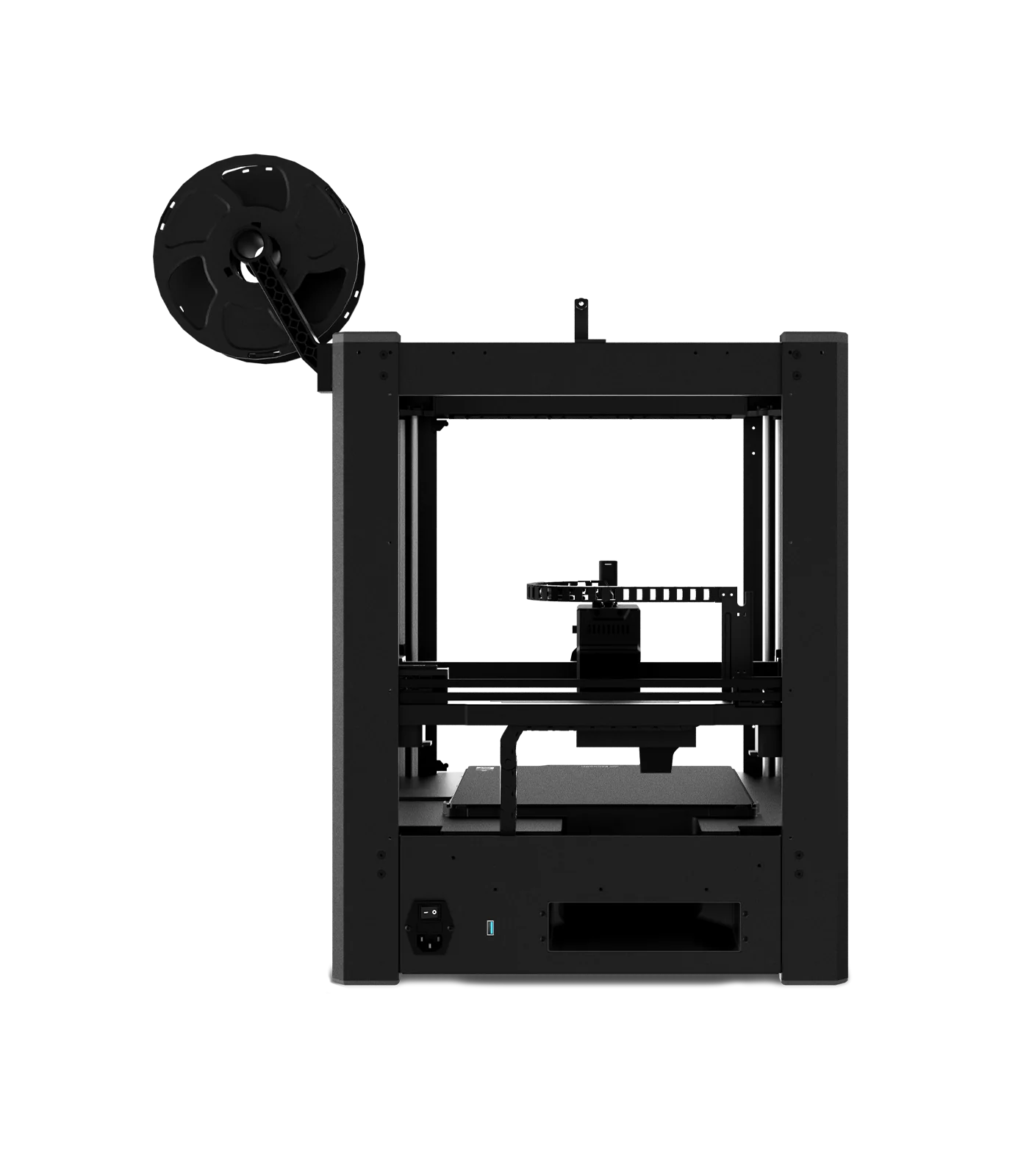

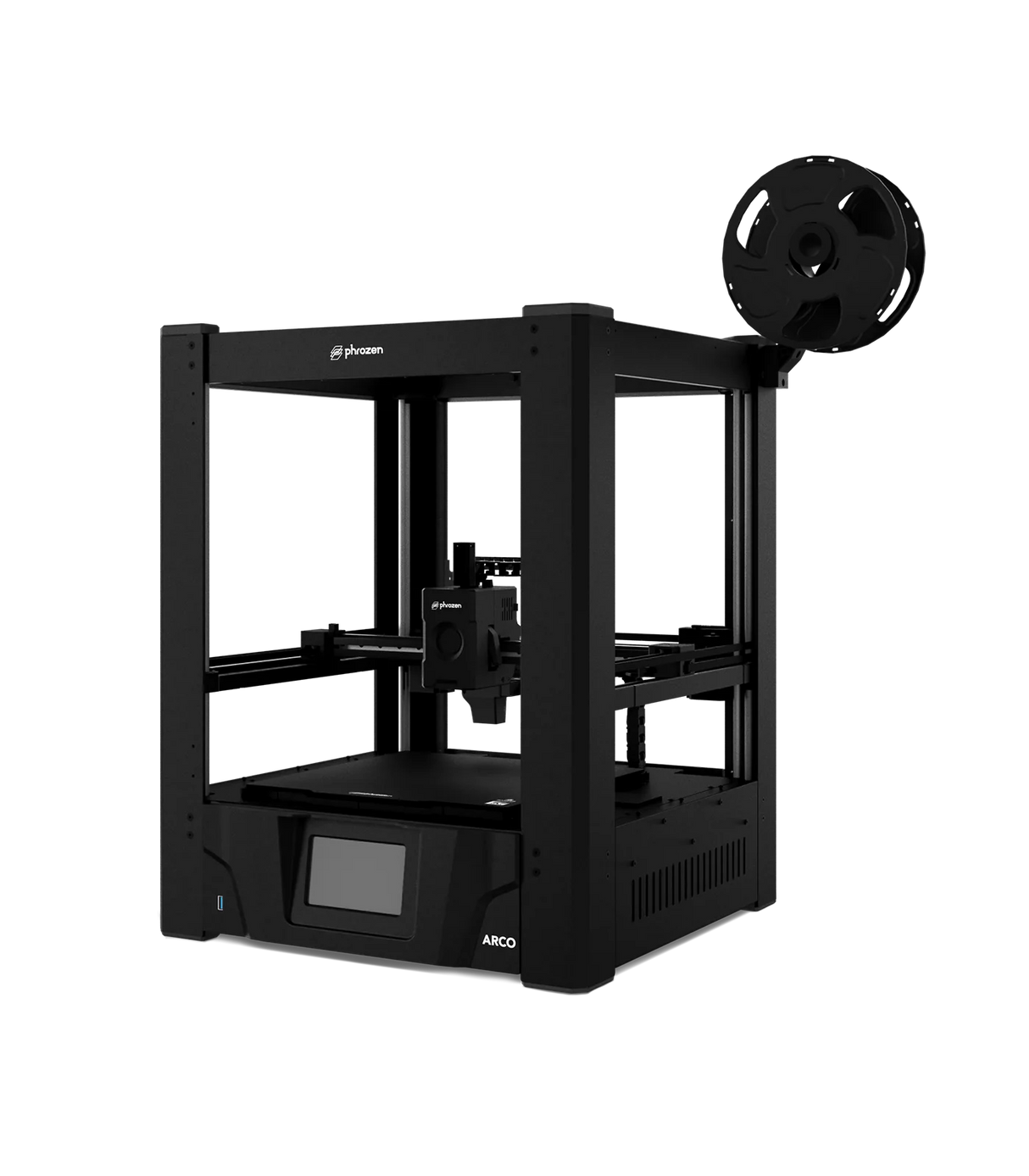

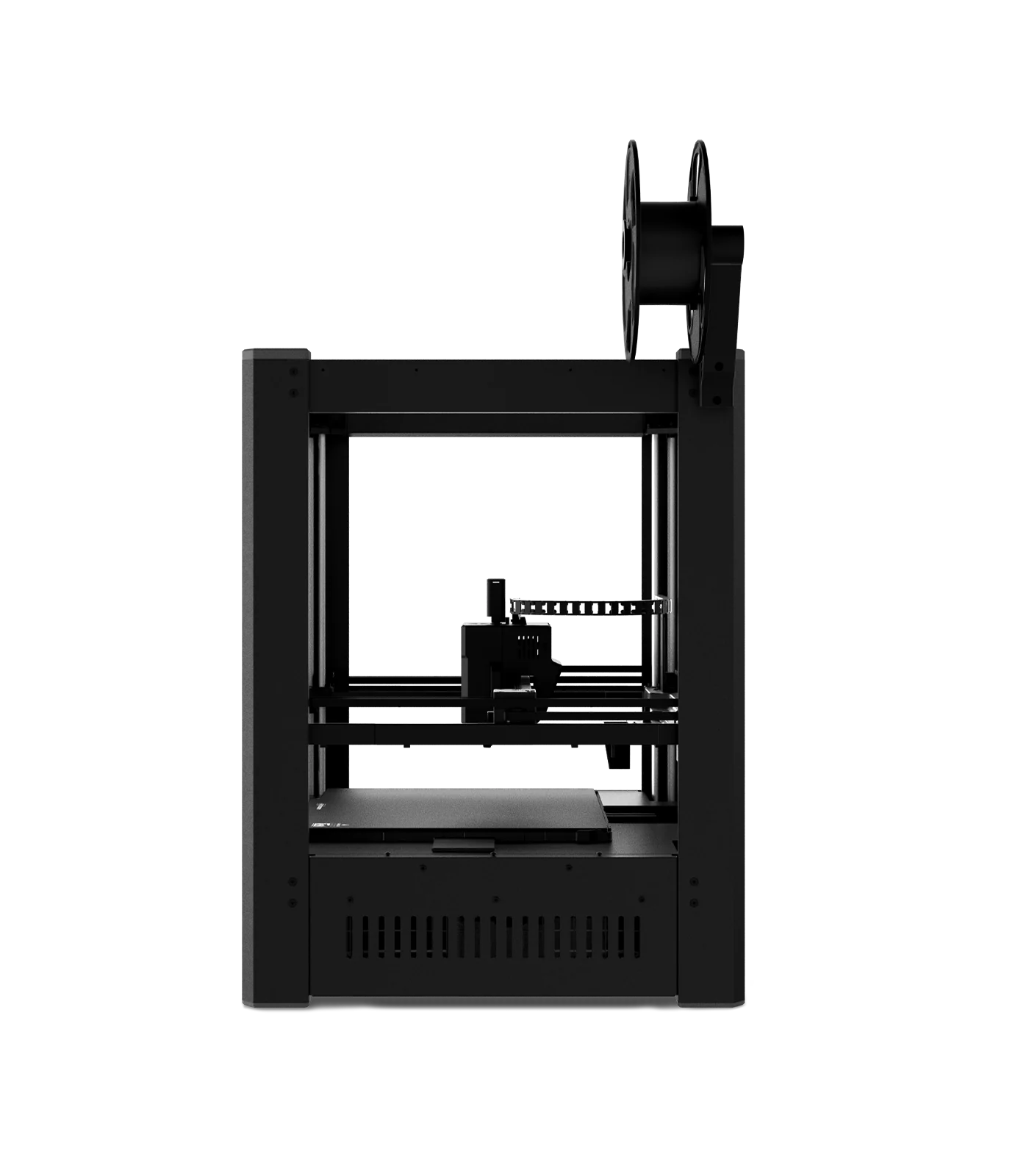

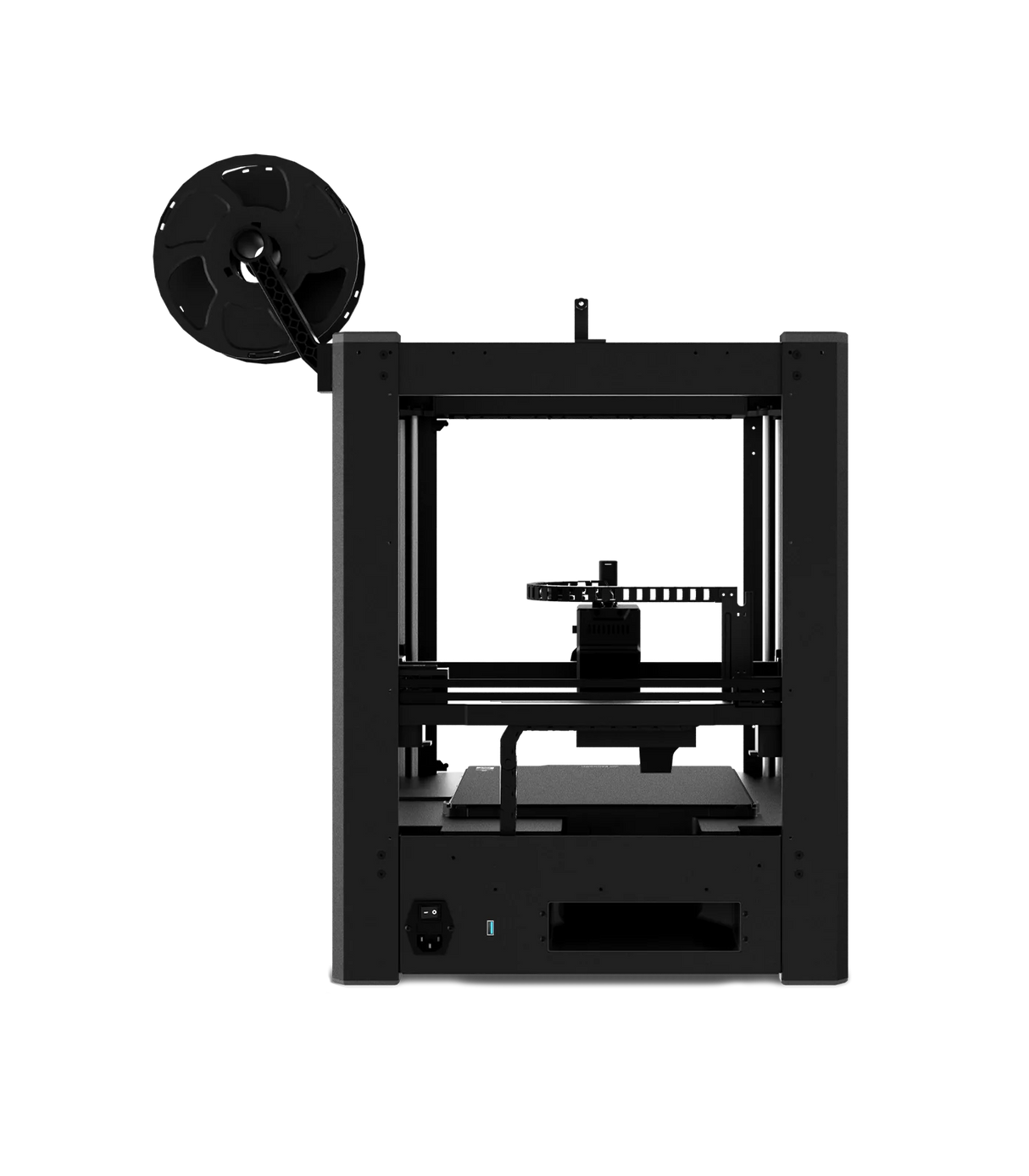

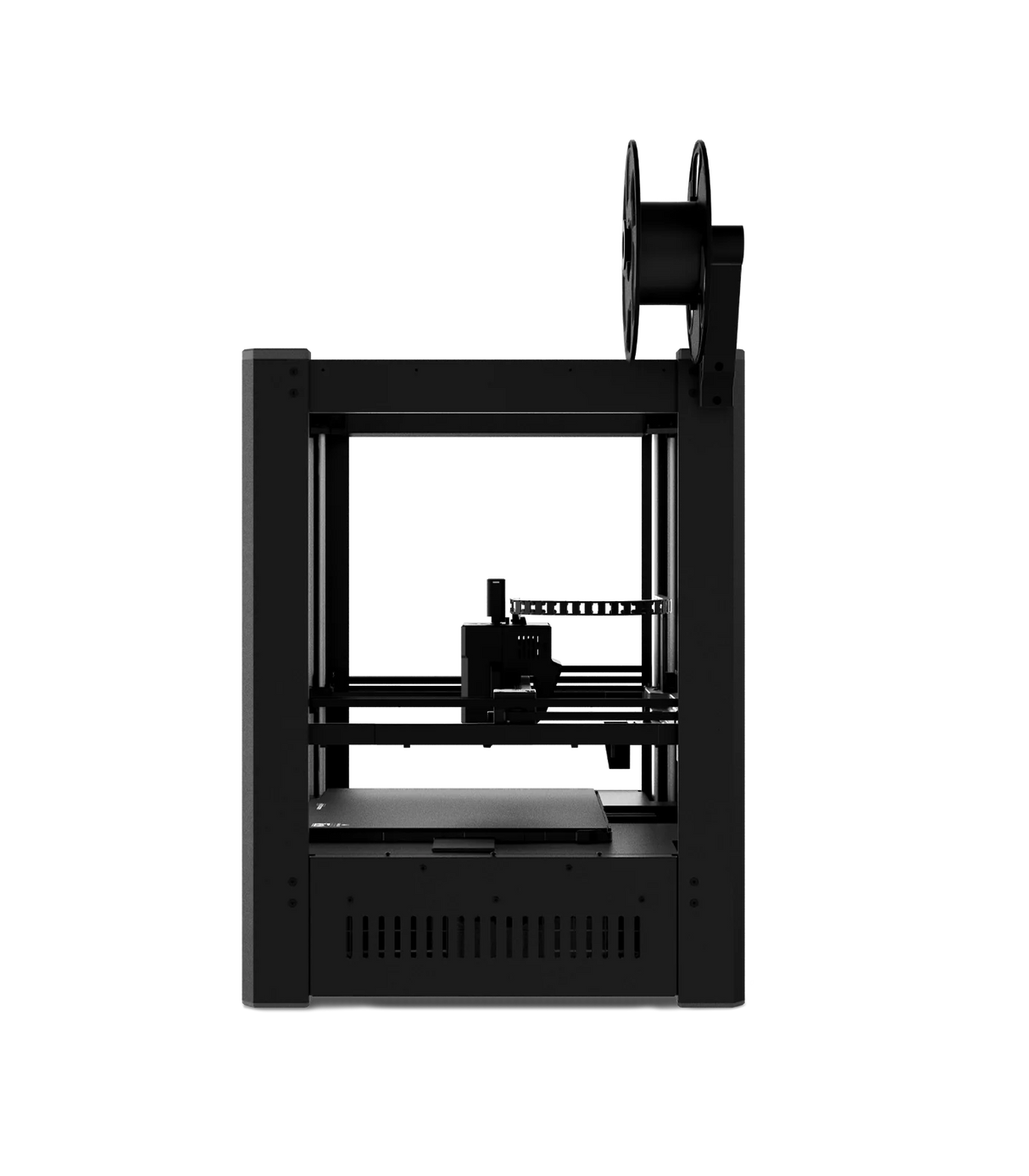

Larger, Faster, More Colors

After a successful Kickstarter campaign with over 1400 backers, the Phrozen Arco is now available to pre-order on Phrozen’s official stores.

While our resin 3D printers are your go-to choice for ultra-detailed prints, the Arco FDM 3D printer will help you to go BIG!

Phrozen Arco revolutionizes FDM 3D printing with incredible printing speeds and unparalleled printing volume, setting a new standard for precision and efficiency. This breakthrough, powered by the open-source Klipper system, provides precise control and flexibility, allowing you to tailor your printing experience to perfection.

The Phrozen Arco is compatible with the Phrozen Chroma Kit multicolor system, PentaShield enclosure panels, and Phrozen High-Speed PLA for maximum printing experience and results.

Benefits

• Large-Size Printing Capabilities: With printing volume of 300x300x300 mm³, feel free to expand your creations and print lifesize masks, crowns, and more, all in one piece.
• 12 Times Faster Than Conventional Printers: Empowered by dual 18 mm gears and a 9.5 torque ratio HGX extruder, Arco easily delivers an impressive speed of 600 mm/s with a substantial acceleration of 30,000 mm/s².
• Consistent Performance Across Materials: The Arco is enhanced with our patented Direct Extrusion Path (DEP) system, efficiently reducing the distance between gears and heat source and maintaining steady extrusion even for soft materials like TPU.
• Minimal Wobbling for Top Quality Prints: In a mission to deliver the utmost speed optimization, Arco is designed with a low-gravity base, core XY structure, and 4 reinforced support pillars to improve the build for higher stability.
• Enjoy Open Source Freedom: Experience the power of customization with Phrozen Arco's open-source system. Developed with Klipper firmware, it empowers Arco users to make modifications and gain total control over your 3D printing experience.
• Embark on a Multicolor Printing Journey: Get the ChromaKit multicolor system as an extension for your Arco, and enjoy the ultimate colorful creations printing up to 4 colors in one model.

Specs

• Printing Volume: 300 x 300 x 300 mm

• Framework: CoreXY

• Single / Multi-Color: Multi-Color Compatible

• Printing Speed*: Up to 1,000 mm/s ; acceleration up to 40,000 mm/s²

• Maximum Hotend Flow Rate*: 50 mm³/s

• Maximum Heated Bed Temperature: 110°C

• Maximum Nozzle Temperature: 300°C

• Printing Power: 900W

• Power Requirement: 100–240V AC ; 50-60 Hz

• System Type (Firmware): Klipper

• Slicer: Phrozen Orca | Orca Slicer | PIXUP FDM Slicer

• Display Screen: 5-inch Touch Panel

• Supported Filament:

• PLA: Supported.

• PET/PETG: Supported.
  ABS: Supported; recommended to print with the PentaShield.
  TPE/TPU: Supported; recommended to print with the CHT high-flow nozzle.
  PA (Nylon): Supported; recommended to print with the PentaShield.
  PP: Supported; recommended to print with the PentaShield.
  PC (Polycarbonate): Supported; recommended to print with the PentaShield and a wear-resistant nozzle.
  Carbon / Glass Fiber Reinforced Filaments: Supported; recommended to print with the PentaShield and a wear-resistant nozzle.


• Connectivity: Wi-Fi I USB

• Assistance Features:

• Built-in Camera: Resolution 720p, 150° Wide Angle Lens

• Material Breakage Detection: Supported
  Printing after Power Outage: Supported


• Machine Weight: 22 kg/48.5 lbs

• Measurements: 492 x 475 x 620 mm / 19.3 x 18.7 x 24.4 inches
